Product Features
01
The main drive of the single roller mixer adopts double reducer to drive, which is more flat;
02
The liquid（such as water, molasses, oil, etc） is added under a certain positive air condition, which is more accurate and uniform.
03

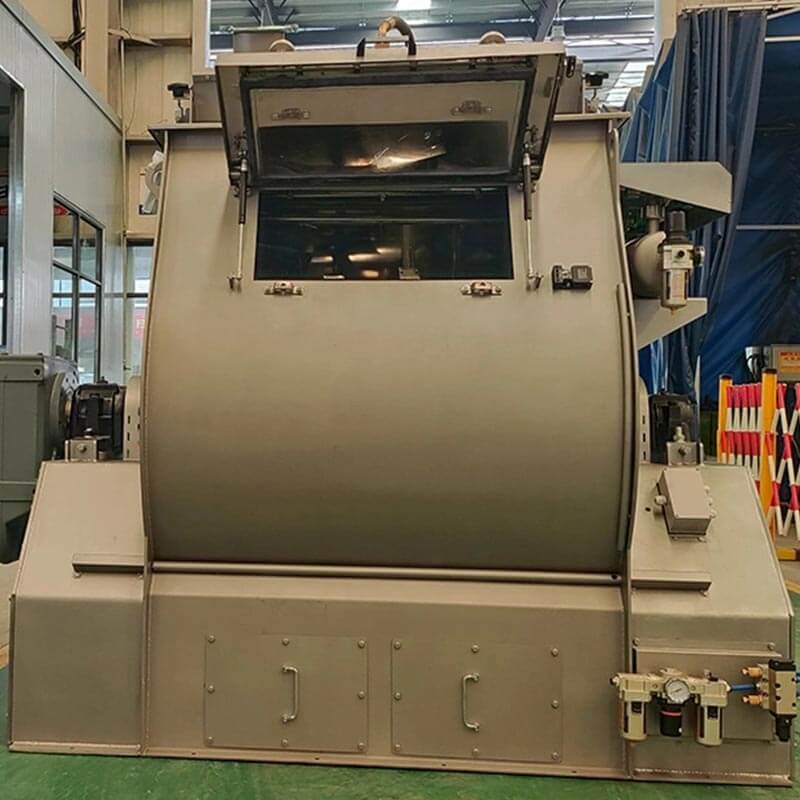

It adopts pneumatic discharge mechanism with self-locking function, discharge door sealing with silica rubber, no leakage. large access door, reasonable design, convenient for cleaning and maintenance.
04
The limit switch in the access door can ensure safety operation.
05
Single roller double paddle mixer, mixing time 45-60s. High evenness, mixed evenness is more than 97.7%. Wide open discharge door, residual less than 0.1%.
06
Energy saving machine, tons of power consumption is only 0.3W.
Technical Parameters
| Model | ZNHH500 | ZNHH1000 | ZNHH2000 | ZNHH4000 | ZNHH6000 | ZNHH8000 |
| Volume(m³) | 0.5 | 1.0 | 2.0 | 4.0 | 6.0 | 8.0 |
| Mixing Capacity （kg） | 250 | 500 | 1000 | 2000 | 3000 | 4000 |
| Powe（kw） | 7.5 | 11 | 18.5 | 30 | 45 | 55 |
| Mixing Time/Batch(S) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 60-80 |
| Mixing Uniformity Cv(Cv%) | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 |
Delivery Goods
We follow a standardized process: prepare order verificationequipmentfactory quality inspectionpacking list re-inspectionscientific packaging andtransportation to ensure safe and undamaged deliveryofequipment.
